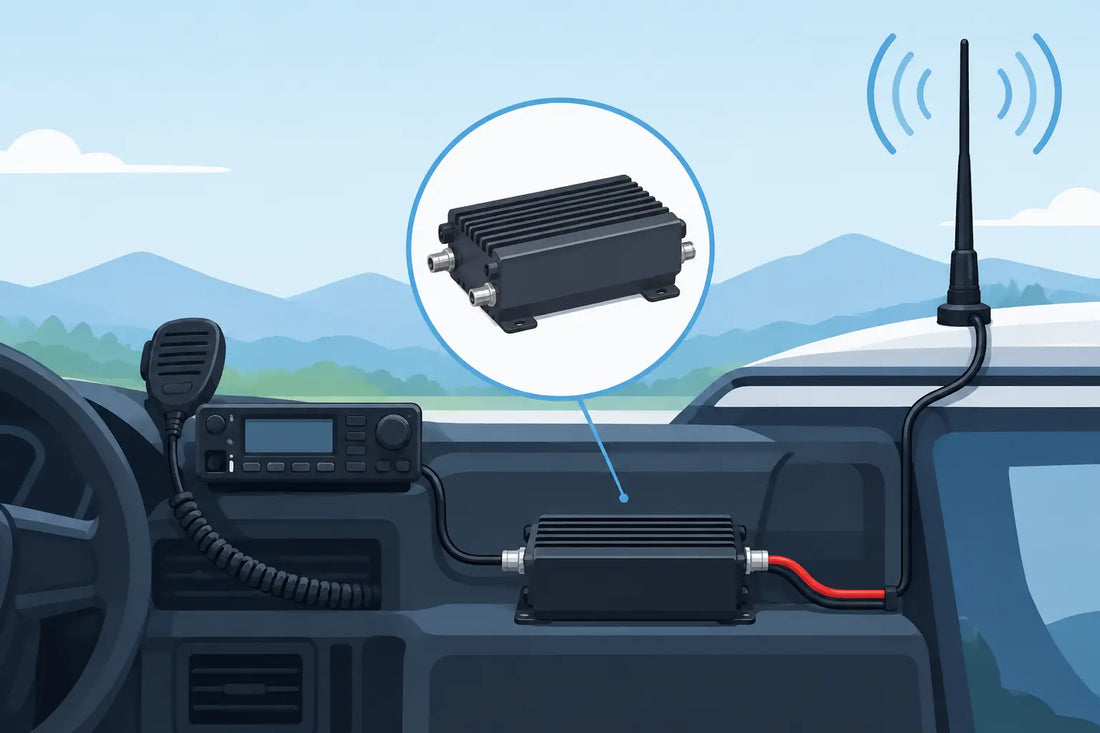

How Radio Amplifiers Fit a Mobile Radio Setup

A radio amplifier is often the first upgrade considered when a CB or 10 meter setup needs more reach. More output power can improve a station's ability to be heard, especially from a moving vehicle or in weak-signal conditions. But radio amplifiers are not a substitute for a properly tuned antenna, clean power wiring, or a radio that is matched to the amplifier's input requirements.

The right unit is the one that fits the radio, antenna system, operating mode, and available electrical capacity. The wrong unit can create distorted audio, excessive heat, high SWR problems, and expensive damage to the final stage of the radio or amplifier.

What Radio Amplifiers Actually Do

A radio amplifier increases the RF power sent from the transceiver to the antenna. That added power can help a signal cover more distance or hold a conversation when conditions are marginal. It does not receive weak signals better by itself, remove local noise, or correct an antenna that is poorly installed.

This distinction matters. If you can hear a station clearly but they cannot hear you, more transmit power may help. If both transmit and receive are poor, start with the antenna system, coax condition, mounting location, grounding, and noise sources in the vehicle. A high-power amplifier connected to a compromised antenna system simply pushes more RF into a problem.

Output wattage gets attention, but it is only one specification. Drive range, mode compatibility, cooling design, duty cycle, supply voltage, and physical dimensions all determine whether an amplifier belongs in a particular mobile installation.

Match Amplifier Drive to the Radio

The most common amplifier mistake is treating every radio as if it produces the same power. A stock CB radio, a peaked AM radio, and a high-output 10 meter radio can have very different carrier and peak power levels. The amplifier must be selected around the actual power feeding its input, not an assumed factory rating.

On AM, pay attention to dead key or carrier power as well as modulation. An amplifier driven too hard can flatten modulation, generate excess heat, and produce a signal that is loud nearby but poor at distance. Backing down the carrier or using a radio with an appropriate low-power setting is often the cleaner solution.

SSB requires another measurement: peak envelope power, commonly called PEP. Voice peaks can drive an amplifier differently than a steady AM carrier. An amplifier that is comfortable with one mode at a given input level may not be comfortable with another. Verify the manufacturer's stated drive range and mode support before connecting anything.

A practical setup is one where the radio operates well within the amplifier's input limit. Running at the edge of a rating may look impressive on a wattmeter, but it leaves little margin for voltage changes, modulation peaks, heat, or tuning variations.

More wattage has diminishing returns

Doubling transmitter power does not double perceived signal strength. RF power gains become progressively less dramatic to the receiving station, particularly once the antenna system is already performing well. That is why a better antenna location, a quality mount, and low-loss coax can sometimes make a more noticeable difference than a major increase in amplifier output.

For a truck, pickup, or off-road vehicle, antenna height and a solid ground plane are often the limiting factors. A compact radio amplifier can be useful when space is tight, but it should be part of the system rather than the entire plan.

Start With SWR and Antenna Performance

Before adding power, check standing wave ratio across the frequencies you plan to use. A low, stable SWR shows that the antenna system is presenting a reasonable match to the radio and amplifier. It is not the only measure of antenna performance, but it is a necessary baseline.

Check SWR with the amplifier bypassed first. Tune the antenna using the radio at normal power, then retest after the amplifier is installed according to the equipment instructions. Do not use an amplifier to force power through a high-SWR antenna. Reflected RF can overheat output devices, trip protection circuits, and damage equipment quickly.

Coax and connectors deserve the same attention. Pinched coax, corroded mounts, loose PL-259 connectors, and poor bonding can create intermittent problems that only show up once more power is added. A system that works at 4 watts may fail at substantially higher power because weak connections become RF hot spots.

Power Wiring and Heat Are Not Optional Details

A mobile amplifier draws far more current than a radio alone. Running it through a factory accessory outlet, thin speaker wire, or an undersized fused lead invites voltage drop and heat. The result may be reduced output, distorted transmit audio, alternator noise, or a unit that shuts down when pushed.

Use adequately sized power and ground wiring for the amplifier's current requirement, with a fuse placed close to the battery on the positive lead. Keep power runs as short and direct as practical. Follow the amplifier manufacturer's instructions for fuse rating, wire gauge, grounding, and remote-key wiring.

Heat management matters just as much. Mount the amplifier where air can move around it, away from direct heater outlets, wet cargo areas, and tightly sealed compartments. An amplifier under a seat may fit physically, but it may not have enough airflow for long AM transmissions or repeated SSB operation. Output ratings are often based on specific conditions, and sustained use in a hot vehicle can demand a more conservative approach.

Choose a realistic duty cycle

A short callout transmission and a long key-down transmission place very different loads on an amplifier. AM carrier operation creates continuous demand. SSB voice operation has natural pauses and lower average power, even when PEP readings are high. Consider how you actually communicate before choosing an output level.

For regular long-distance conversations, thermal stability and clean operation are usually more valuable than the largest wattage number on a product label. A properly matched amplifier running comfortably will last longer and sound better than an oversized unit constantly pushed to its limit.

Installation Details That Affect Signal Quality

Keep RF coax away from power wiring and avoid unnecessary adapters. Each added connector is another possible loss point or intermittent connection. Use quality coax appropriate for the frequency and power level, and route it carefully to prevent crushing, sharp bends, and water intrusion.

If the amplifier uses a preamp, use it with restraint. A receive preamp can make weak stations louder, but it also raises background noise and can overload the receiver in a busy area. In a truck stop, city, or convoy environment, the preamp may make the radio less pleasant to use. It depends on local RF conditions and the sensitivity of the radio.

Watch for RF feedback after installation. Symptoms include squealing audio, erratic meters, radio resets, electronic accessories acting strangely, or an amplifier that keys unexpectedly. These issues usually point to poor grounding, common-mode RF on the coax, antenna placement, or wiring routed too close to sensitive electronics. Solve the installation issue instead of trying to tune around it with more power.

Use Radio Amplifiers Within Applicable Rules

Power capability does not automatically mean legal operating authority. CB, amateur, and other radio services have different equipment and power rules, and those rules can depend on the frequency, service, license status, and location. Confirm that the equipment and operating method are permitted for your intended use before transmitting.

RF exposure also deserves attention, especially with high-power mobile installations. Antenna placement, distance from passengers, output level, and transmission time all affect exposure. Follow the equipment documentation and applicable FCC requirements, and avoid mounting transmitting antennas where people are routinely close to the radiating element.

Buy for the Whole Station, Not the Wattmeter

The best amplifier choice begins with honest numbers: your radio's carrier and PEP output, antenna SWR, available battery capacity, installation space, and preferred operating modes. From there, select a unit with sufficient headroom, dependable cooling, and the right drive range instead of shopping only by maximum advertised watts.

A clean antenna system, stable voltage, and a properly matched amplifier give a mobile station the kind of performance that matters when the road gets long and the other station is just beyond normal range.
