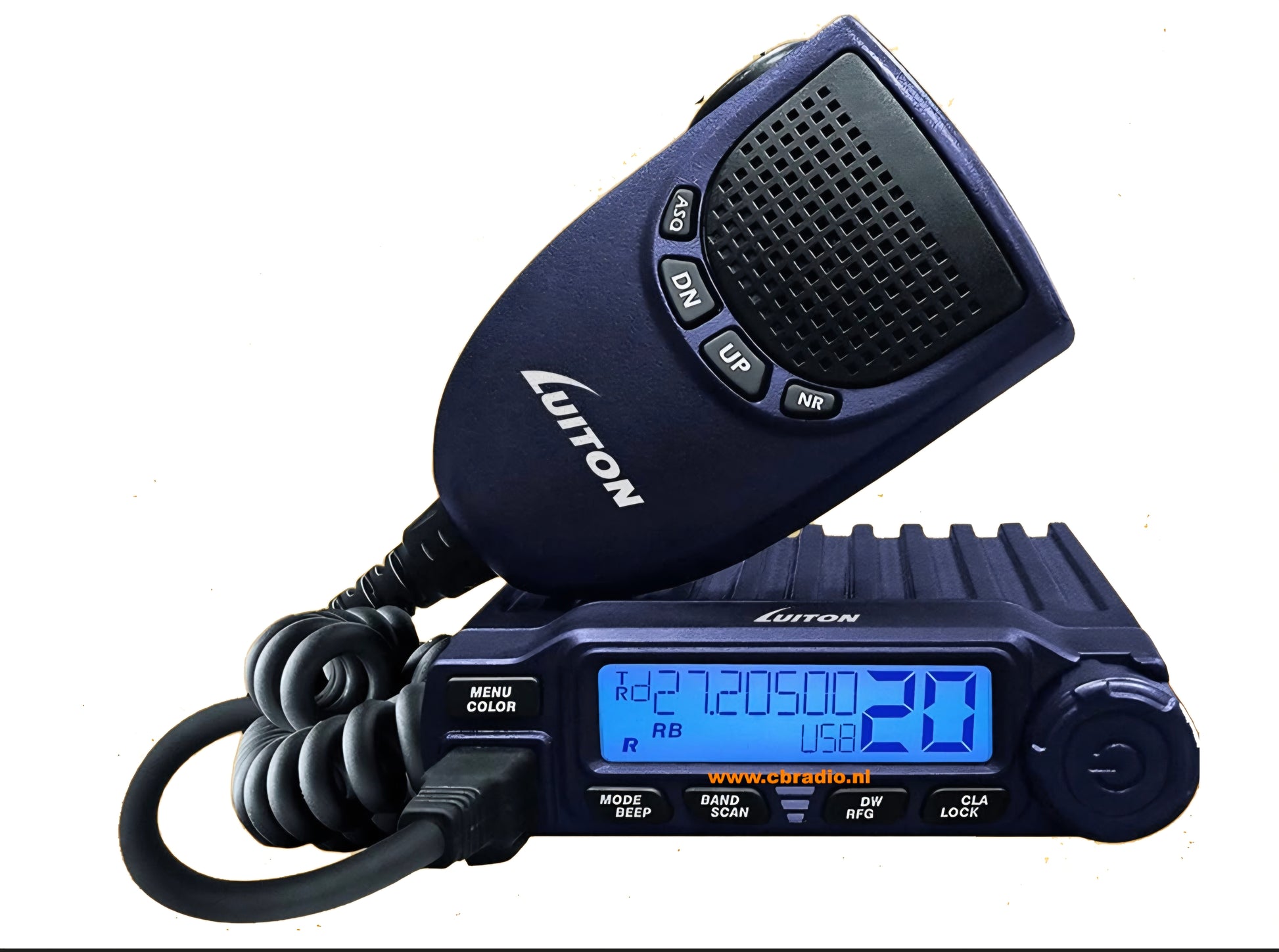

Luiton LT-310 CB radio

SPECIFICATIONS

GENERAL

Type: Citizen band / Freeband / Export transceiver

Frequency range: Standard

26.965-27.855 MHz

Expanded

24.715-30.105 MHz

Channels / tuning steps: 80 (Standard)

480 (Expanded)

or 10 / 100 Hz, 1 / 10 / 100 KHz, 1 MHz

Mode: AM / FM / SSB

Frequency control: PLL

Frequency stability: 0.001% @ -30 to +50°C (-22 to +122°F)

Clarifier or Delta tune: Continuous (Digital VFO)

Power supply: 12-14 VDC

Current drain / power consumption: RX: ? mA

TX: ? A

Antenna impedance / connector: 50 ohm / SO-239

Dimensions (W*H*D): 128*25*101 mm (5.04*1.05*3.98")

Weight: 478 g (1.05 lb)

Other features: PA. ANL/NB. Dual watch. AI noise reduction. Roger beep.

VOX. ASQ. Selectable backlite colors. Talkback. Scanning.

Dimmer.

RECEIVER SECTION

Receiver system: Double conversion superheterodyne

1st IF: 10.695 MHz

2nd IF: 455 KHz - Ceramic filter: LT455HT

Sensitivity: AM: 1 uV (10 dB S+N/N)

FM: 0.3 uV (12 dB SINAD)

SSB: 0.25 uV (10 dB S+N/N)

Squelch sensitivity:

Selectivity: AM/FM

6 KHz (-6 dB)

9 KHz (-60 dB)

SSB

2.6 KHz (-6 dB)

3.3 KHz (-60 dB)

Image rejection: 80 dB

AF output power / speaker: 2 W at 10% distortion / 8 ohm

External speaker connector: TS "Minijack" (3.5 mm)

TRANSMITTER SECTION

RF output power: AM: 7 W (Average)

FM: 7 W

SSB: 15 W (PEP)

Modulation system:

Max AM modulation (Factory set): ? %

Max FM deviation (Factory set): ±2 KHz

Spurious emissions: Better than -50 dB

Microphone impedance / connector: 2.2 Kohm / 8-pin (RJ45 modular jack)

Microphone input level: ? mV

MISCELLANEOUS

Manufactured: China (By Bond Telecom Co. Ltd.), 2026-202x

Main PCB: MiniSSB v1.4 or v1.6.

Double sided with mainly SMD components

Sub PCBs: ? - Front panel/CPU boar

- -
